Proto0 Assembly Guide

This guide walks through assembling your Proto0 glasses — mounting the Compute Pack and a battery pack onto the head strap and connecting everything up.

New to the hardware? Read the Proto0 User Guide first — it covers what's in the kit, the buttons and status LEDs, and safety notes.

The Compute Pack and a battery pack clip together on the glasses' head strap: the Compute Pack has trapezoidal grooves on its back that mate with matching rails on each battery case. The battery case slides onto those rails, sandwiching the strap between the two.

Before you start: disconnect USB power and any battery before connecting or disconnecting the Glasses LED Panel — see the safety notes in the Proto0 User Guide.

1. Lay out the parts

Set out the glasses (with the head strap fitted), a battery pack, and the compute pack. Lay the strap between the compute pack's mounting rails as shown.

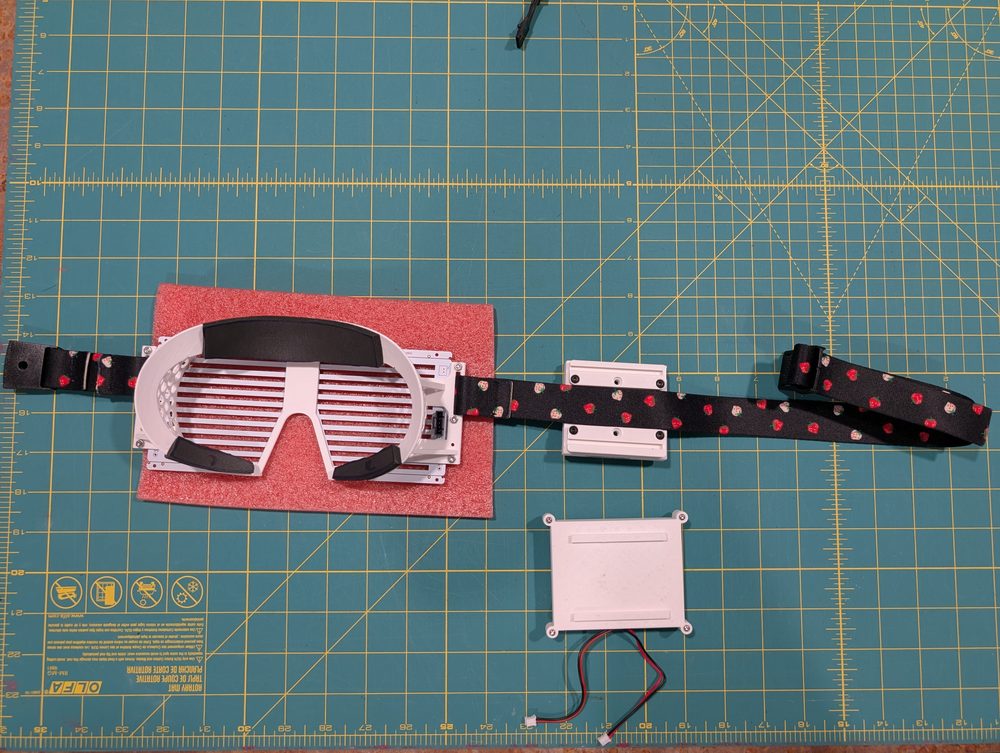

Assembly parts laid out, with the strap across the compute pack's rails

2. Slide the battery pack onto the rails

Slide the battery pack onto the matching rails of the compute pack. The strap should be enclosed between the battery pack and the compute pack as shown, with room to slide.

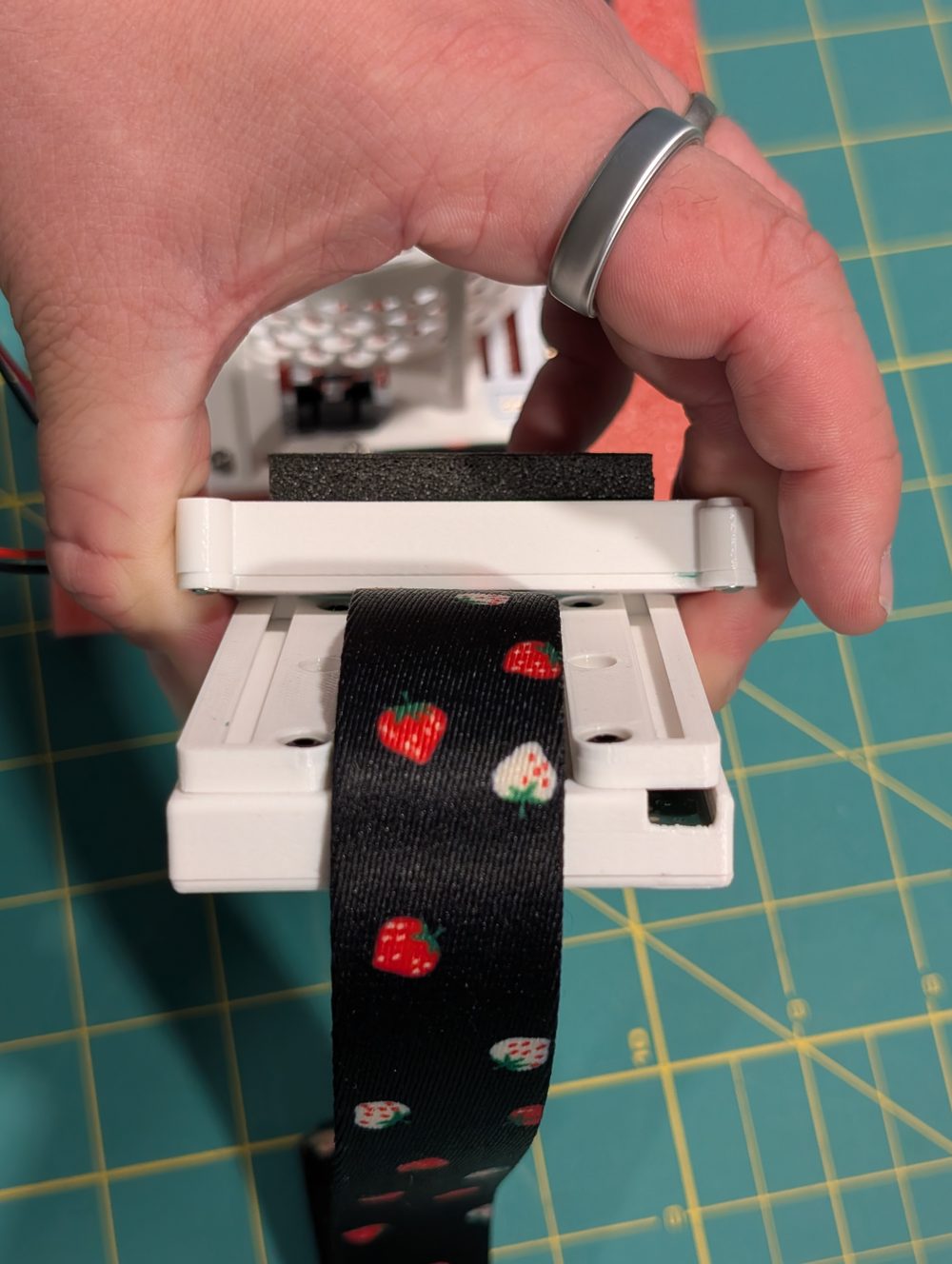

Sliding the battery pack onto the compute pack's rails over the strap

3. Center the battery pack

Finish sliding the battery pack onto the compute pack until it's centered on the compute pack. The rails have end-stops that will bottom out when they are aligned correctly.

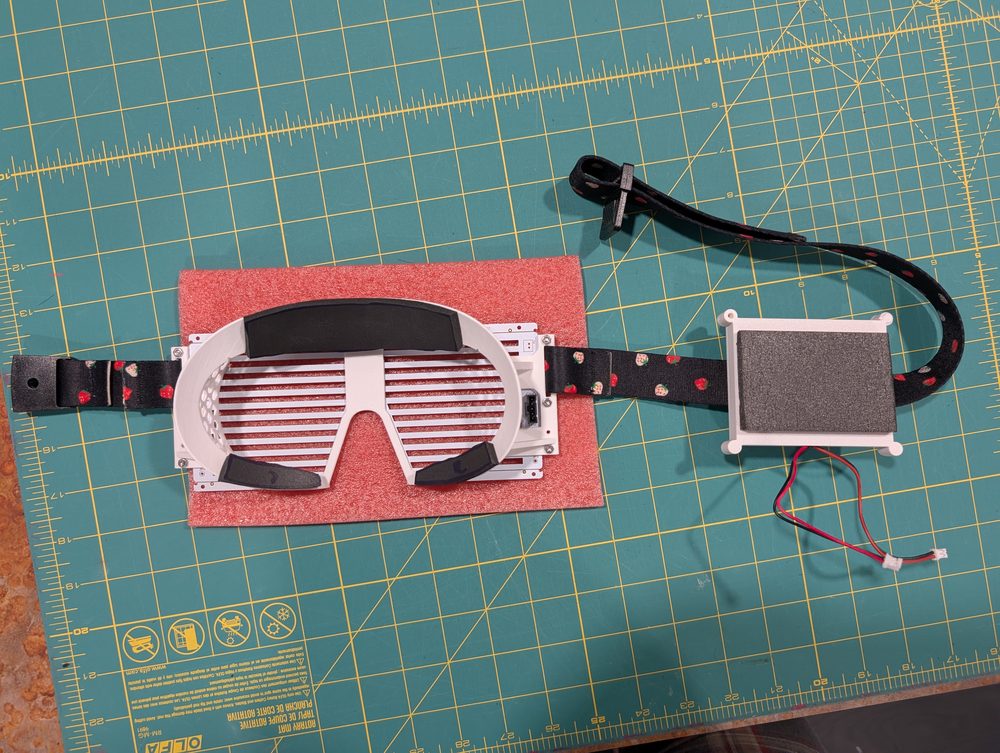

The battery pack slid fully onto the compute pack

4. Connect the battery cables

Turn the compute pack over and connect the battery cables.

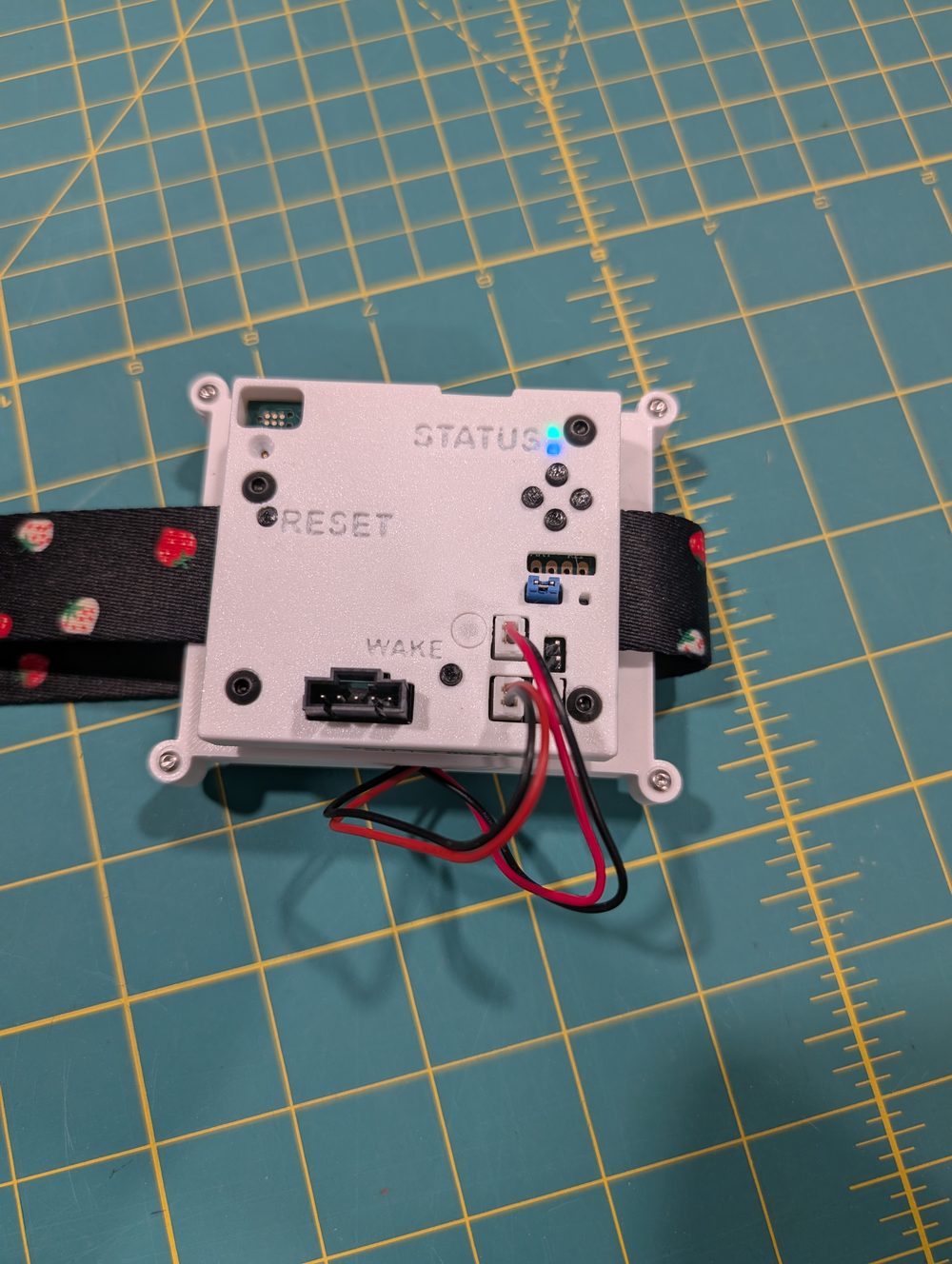

The compute pack turned over with the battery cables connected

5. Connect the LED panel cable to the glasses

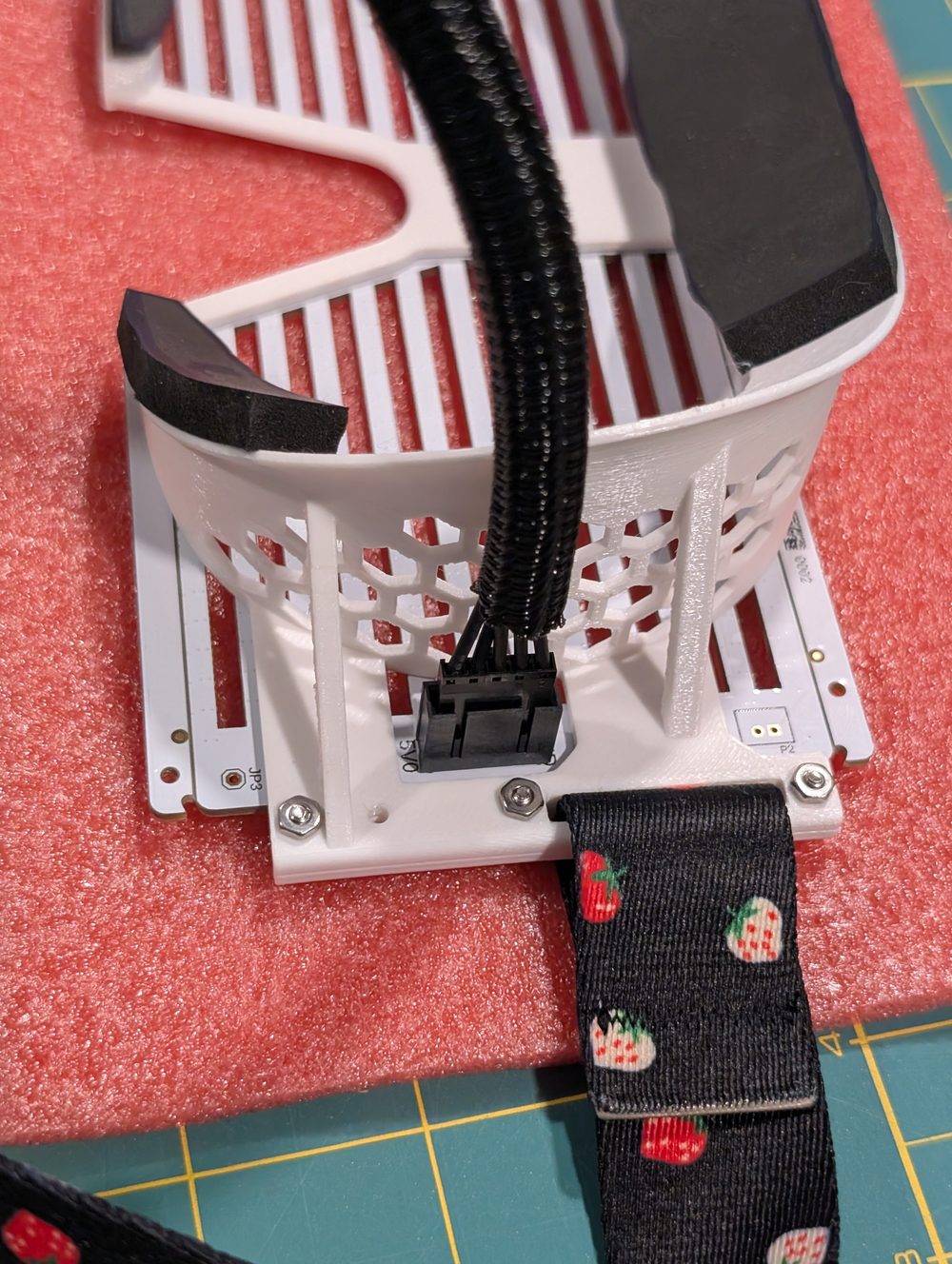

Connect one end of a Glasses LED Panel cable to the connector on the back of the glasses frame.

Connecting the LED panel cable to the glasses

6. Connect the LED panel cable to the compute pack

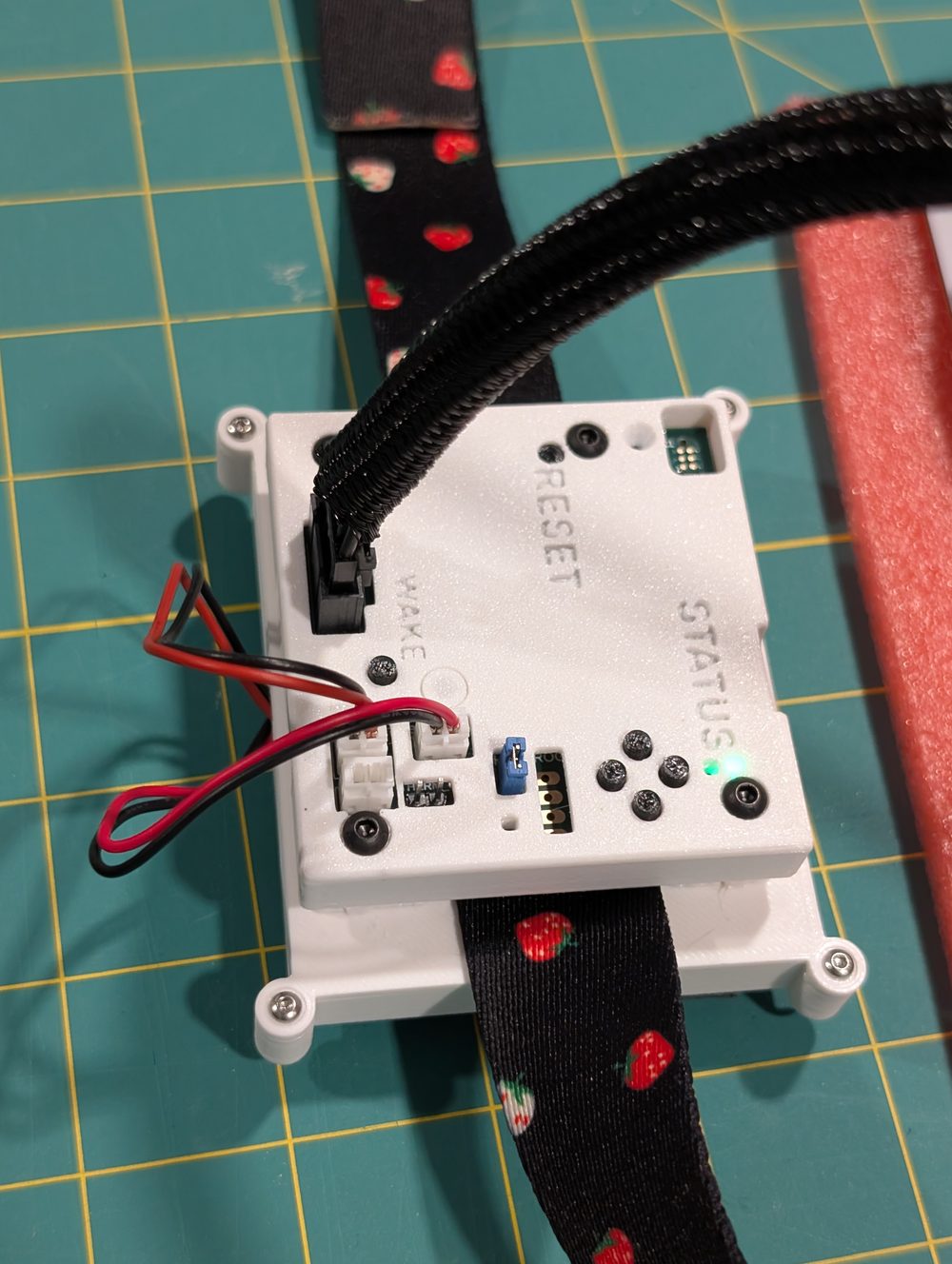

Connect the other end of the Glasses LED Panel cable into the compute pack.

Connecting the other end of the LED panel cable to the compute pack

Your glasses are now assembled and ready to wear.

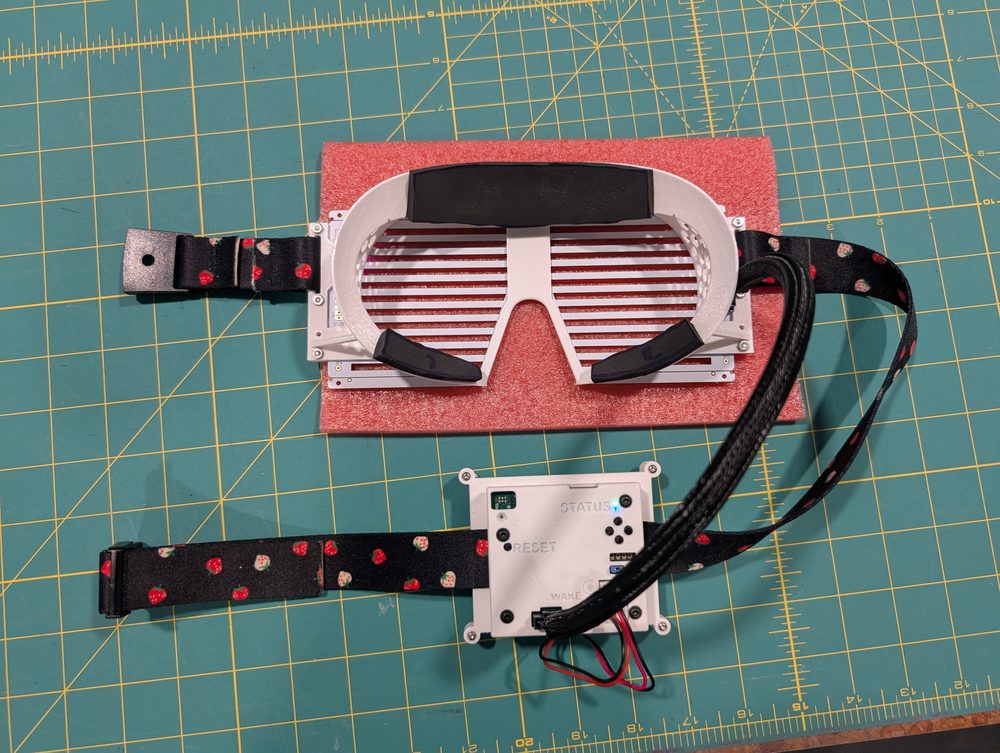

The fully assembled glasses

Cable lengths

Three Glasses LED Panel cables are included, in short, medium, and long lengths. All three lengths work — use whichever suits your setup:

Battery extension cables

The kit includes battery extension cables so a battery pack can be routed away from the Compute Pack — for example, mounted further back on the head strap or tucked into a pocket while the glasses are worn. A variant with an inline switch is also included, letting you cut battery power without unplugging anything.
